Trystar Weldrack

Product of the Week -- Trystar 9 kVA Weld Rack

Dec. 29, 2020

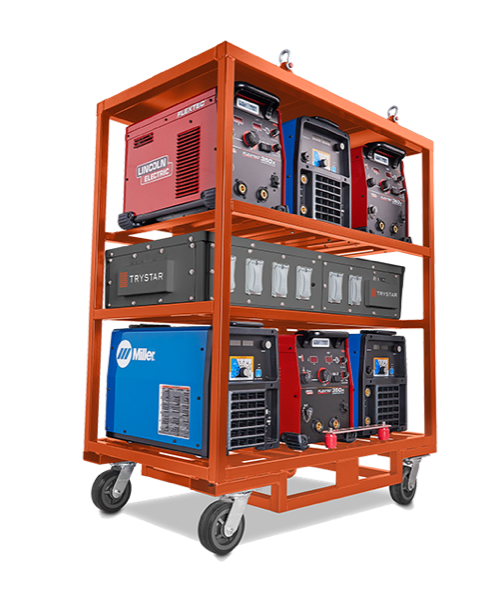

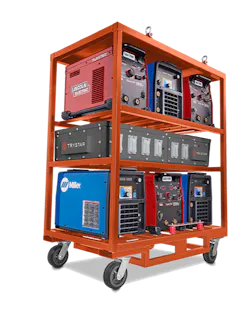

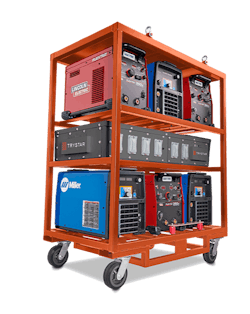

The Trystar 9 kVA 6-Pack Weld Rack is a safe, convenient way to store, move to the job site or factory floor and connect up to six 350 Series portable welding machines.

The Trystar 9 kVA 6-Pack Weld Rack is a safe, convenient way to store, move to the job site or factory floor and connect up to six 350 Series portable welding machines. Built around a Trystar 9KVA 600 or 480V to 208/120V step down transformer, the 425-pound (without machines) steel weld rack meets NEMA 3R, UL 50 and UL 1640 specifications and features space for six welding machines, an all-aluminum power distribution panel, lift eyes, fork pockets and heavy-duty casters.

The primary side of the Trystar Weld Rack has:

Ÿ Cord Grip Input (Sized for 2/4 Type W) Back Side

Ÿ  1 x 15A 3P 600V Transformer Circuit Breaker

Ÿ  6 x 30A 600V Wetguard Receptacles

Ÿ  6 x 30A 600V 3P Circuit Breakers

Ÿ  1 x Voltage Switch (600V or 480V)

The secondary side has:

Ÿ  6 x 20A 120V NEMA 5-20 Single Receptacles

Ÿ  6 x 20A 1P Circuit Breakers

Ÿ  6 x 20A 120V NEMA5-20 Single Receptacles

Ÿ  6 x 20A 1P High Trip Curve Circuit Breakers

The Trystar 9 kVA 6-Pack Weld Rack provides an integrated solution for portable welding applications that can be customized with different powder coat colors and customer logos. Like all Trystar equipment the 9 kVA 6-Pack Weld Rack is designed and built in the United States.

Trystar designs and manufactures a wide range of portable and industrial power products including panels, I-Lines, transformers, portable automatic transfer switches (ATS) and welding racks. It also manufacture single and dual-purpose generator docking stations, load bank and rotary docking stations, and UL-891 rated switchboards. Trystar cable products include portable and industrial power cables, welding cables, utility cables, and medium voltage cables.
