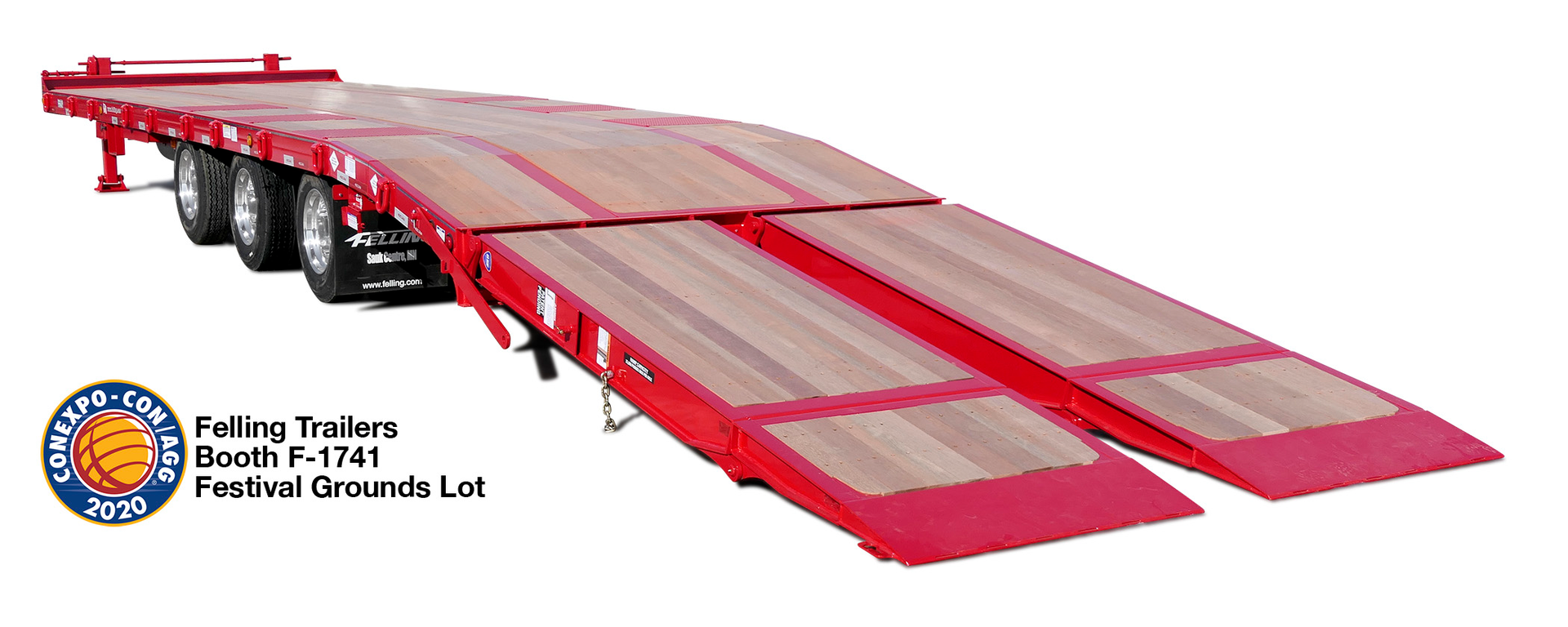

Photo by Felling Trailers
Felling Air Bi Fold Ramps Ft 50 3 Lp con Expo

Felling Trailers to Show Its Air Bi-Fold Ramps at Conexpo

Feb. 29, 2020
Felling Trailers will introduce its new Air Bi-fold Ramps (patent pending) at the Conexpo show in Las Vegas.

Felling Trailers will introduce its new Air Bi-fold Ramps (patent pending) at the Conexpo show in Las Vegas. The Air Bi-Fold Ramp system is featured on Felling's 25-ton FT-50-3 LP, a tri-axle low profile flatbed tag trailer. Felling Trailers will be at Booth F-1741 in the Festival Grounds Lot.

A key feature of Felling's design is in the operation of the flip ramp. The flip ramp locks out fully when extending preventing scraping or marring of the ground, which is undesirable, especially if it's a new surface of any kind. Another key feature is Felling's controlled flow air ramp technology, which provides for soft ground contact of the ramp, keeping new surfaces free from being damaged.

The Air Bi-Fold Ramps are 45 inches wide by 11 feet (7.5' +3.5') wood inlaid. For close to a decade, Felling Trailers has offered air ramps with available lengths of 6 to 8 feet. The 11-foot Air Bi-Fold ramps were designed to accommodate the load angle necessary when loading cumbersome low clearance equipment such as paving equipment and directional drills. The Air Bi-Fold ramps’ length provides the operator with a gentler, more gradual incline to provide ease in loading/unloading with its 9.5 degree load angle with the option of air ride suspension when the air is dropped. Felling Trailers’ Air-Ramp technology allows operators to use the tow vehicles’ onboard air system to power the ramps, eliminating the maintenance of an onboard electric/hydraulic system. Furthermore, the patent-pending technology allows for minimal ground contact when deploying/retracting the ramps to reduce damage to new pavement when loading or unloading.

Felling Model FT-50-3 LP with Air Bi-Fold Ramps

  • 26’ Main Deck Length Plus 6’ Double Incline Beavertail, Apitong Decking
  • 45” Wide x 11’ (7.5’ + 3.5’) Bi-Fold Air Operated, Apitong Inlaid Ramps
  • Air Brakes, ABS 2S/1M, Meritor WABCO (parking brakes on all axles)
  • 25K Ridewell Oil Bath Axles
  • 55” Spread, Ridewell 240 Air Ride with Dump Valve Suspension
  • Air Lift Axle on 1st Axle
  • 235/75R 17.5” Tires on 8 Bolt Aluminum Alcoa Dura Brite Wheels
  • 140,000 lb Twin 2-Speed Jack (39,000 lb. Lift Capacity).
