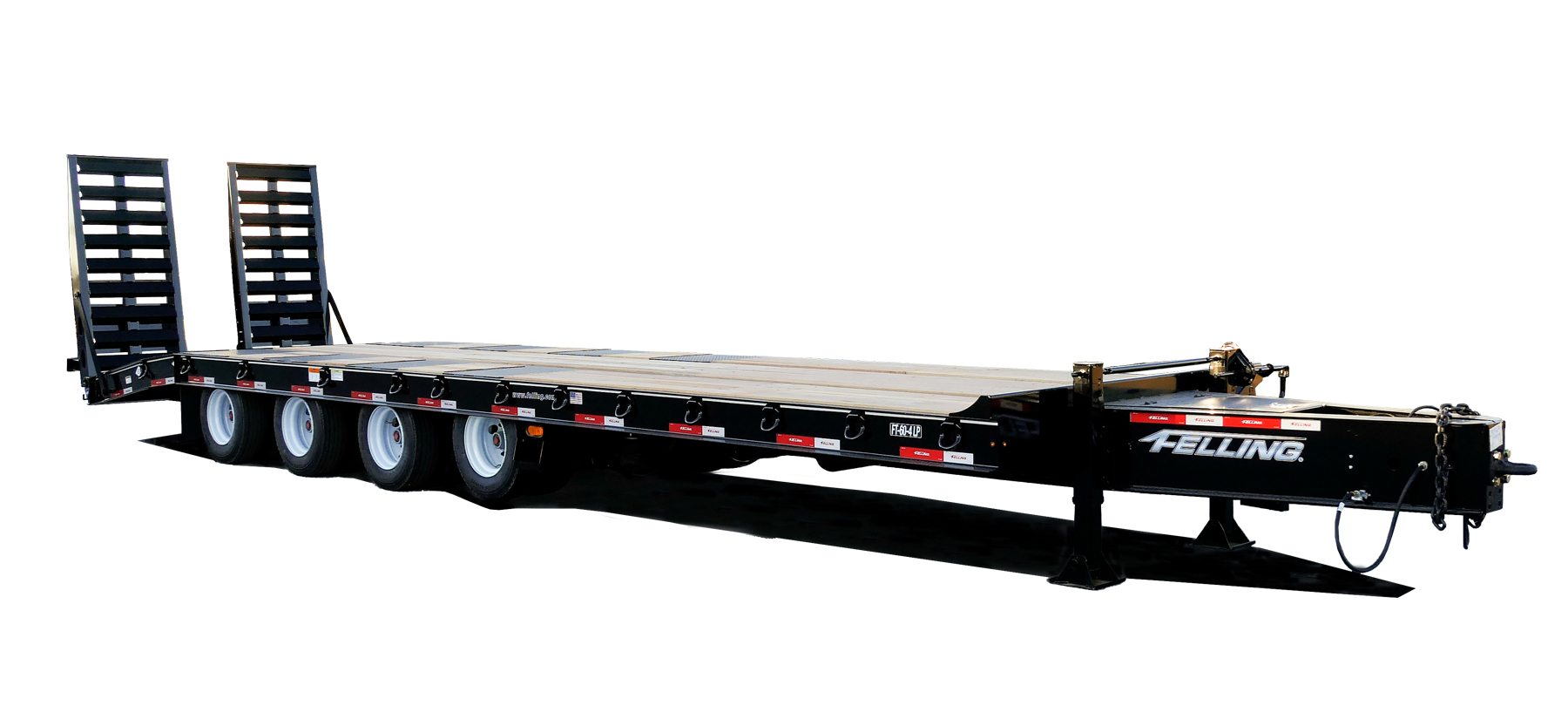

Photo by Felling Trailers
Felling Ft 60 4 Lp Hd 230527 Ntu 23

Felling Trailers Adds Low Pro Heavy Duty Trailers to Deck-Over Tag Line

Jan. 18, 2023
The LP HD has been designed and engineered for transporting heavy (near 50-60K load capacities) wideset loads, like excavators, dozers, and other construction equipment.

Felling Trailers Inc. adds the Low Pro Heavy Duty (LP HD) models to its deck-over tag line. Wideset heavy construction equipment such as mid-size crawler excavators and dozers can be challenging for any seasoned equipment hauler. The equipment is typically oversized, particularly heavy, and unique in shape (length, height, and width). The LP HD has been designed and engineered for transporting heavy (near 50-60K load capacities) wideset loads, such as excavators, dozers, and other construction equipment.

"As equipment continues to get bigger and wider, how weight is distributed can make or break a trailer. Our LP HD series tag has been designed and engineered to accommodate equipment that has an 8’-8.5’ wide track gauge (center to center of tracks), which will concentrate the machines weight directly over the side rails, typically 10-feet-plus overall width machines (some examples: Deere 200/210, CAT 320/323, Komatsu PC210). This has been accomplished along with incorporating the standard features an operator wants and needs," said Felling's sales manager Nathan Uphus.

The LP HD series currently consists of two models; the FT-50-3 LP HD triple-axle 25-ton and the FT-60-4 LP HD quad axle 30-ton (4 axle legality varies by state/providence). The available deck lengths for the triple axel are 24 feet, 26 feet, 28 feet, and 30 feet. The available deck lengths for the quad-axle are 28 feet, 30 feet, and 32 feet.

The Low Pro Heavy Duty (LP HD) series is constructed with a 10-inch structural channel full-length side rail (flanges out), Jr. I-Beam crossmembers 12 inches on center pierced through the heavy-duty, engineered, and fabricated 16-inch-tall mainframe beams, and is standard with 1-3/8-inch apitong decking. The LP HD design was driven by the needs of wide-set heavy loads, with the flange-out side rail construction it allows for optional outriggers to provide additional support and load distribution. Apitong decking is a durable wood. The LP HDs are standard with a 6-foot-long double incline beavertail providing 12-degree and 6-degree load angles, respectively. The double incline feature eliminates the sharp break-over point, which substantially helps load/unload tracked equipment safely. The 6-foot double incline beavertail is constructed with 5-inch x 3-inch self-cleaning angles. The 6 foot x 20-inch ramps, like the beavertail, are built with a 5" x 3" self-cleaning angle, spring-assist construction, or optional air ramp configurations depending on the equipment/operator's needs.

Low Pro Heavy Duty Standard Specifications (triple & quad axle)

  • 16” tall, fabricated Grade 80 main frame beams (stepped down in trunnion area)
  • .5” thick main frame beam flange material
  • 6” high tensile Jr I-beams Grade 80, spaced 12” on center
  • 10” channel side rail (full length) rails turned out
  • Standard 1 3/8” thick apitong decking (white oak optional)
  • Standard 1” bent D-Rings – 16 on Triple, 20 on quad axle
  • 235/75R17.5 J Tires and 25K heavy duty 3 leaf spring suspension
  • 6’ Double incline beavertail with 6’ x 20” spring assist ramps (self-cleaning or wood inlaid)
  • Optional 38” wide x 7’ long air powered ramps (self-cleaning or wood inlaid)
