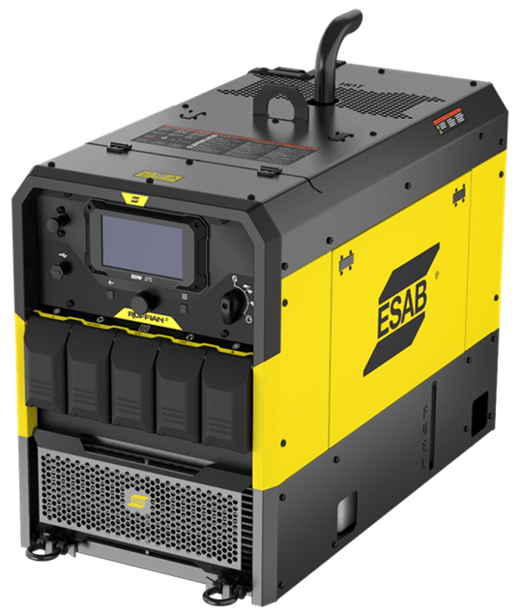

ESAB’s Ruffian Welding Generator Built with Small Footprint for Service Trucks

ESAB has introduced the Ruffian EMP 270G engine-driven welding generator, which offers a multi-process welding output of 270A at 100-percent duty cycle and 11kW of generator power through its multiple 120VAC and 240VAC auxiliary outlets. The unit was assembled in Texas, the Ruffian EMP 270G combines ESAB’s next-generation inverter with the proven reliability of a made-in-America 23.5-HP Kohler Command Pro CH730 gasoline engine. The machine is built and tested for harsh construction environments, designed with a small footprint for service trucks, and features smooth performance in all welding processes.

“The Ruffian EMP 270G builds on the success of our Ruffian 150G engine drive, offering a stronger welding output and more generator power to meet the needs of users in the construction, oil and gas, mobile welding service, maintenance and repair, agriculture and emergency power markets,” says Mateus Fernandes, global product manager, ESAB. “For MIG or flux cored welding, it pairs seamlessly with portable wire feeders like ESAB’s RobustFeed AVS ECHO or Tweco spool gun.”

Advanced Welding Performance

          The Ruffian EMP 270G features a uniquely designed, next-generation inverter which provides an easy-to-start arc in all welding modes, advanced controls to fine-tune the arc (such as arc force for stick and cables calibration for MIG welding), in addition to synergic lines for fast and easy set-up. Ruffian delivers best-in-class performance for all processes +and electrode types, including not only 7018, but also 6010/6011 and hard-facing electrodes. It can also carbon arc gouge with 3/16-inch carbons.

          “The Ruffian EMP 270G incorporates more than 100 customer-requested features in an engine-driven welding power source, starting with a large 7-inch TFT digital display,” adds Fernandes. “The big number display and a high contrast screen allow operators to see parameters from long distances, while the user-friendly menu and advanced HMI (human-machine interface) make set-up and control easy.”

Compact Power, Operator-Centric Design, Versatile Capabilities

          Weighing only 425 pounds with base mounting bolt holes and an 11-gallon fuel tank for hours of run time, the Ruffian EMP 270G is lighter and has a smaller footprint than other machines in its class. Its modern and rugged exterior is tested in the harshest environments to meet the highest global standards and is backed by a three-year warranty. Designed with fully removeable doors, it allows easy access to the battery and other internal parts and means changing the oil requires no tools and little time.

          The Ruffian EMP 270G has four 120VAC 20A GFCI receptacles, one 240VAC (6-50R) dedicated outlet and another 120/240V hybrid outlet, all protected by circuit breakers and rubber covers. This auxiliary output can run grinders, drills, saws, lights, radio, air compressors, pressure washers, pumps, refrigerators, furnace blowers, microwaves, and light motors. It has a peak (or surge) output of 11kW for stronger starting performance and continuous output of 10.5kW. Contractors can use the generator power to create a two-work station, either arc welding or even plasma cutting, such as by running a Rogue ES 201iP PRO Stick/TIG welder or a Thermal Dynamics Cutmaster 30+.

Support and Availability

To support customers, ESAB’s website offers several videos highlighting the capabilities of the Ruffian EMP 270G including how-to videos on AC power, welding techniques, safety, changing the oil, and others. Ruffian engine drives are available through standard distribution and online sales channels.

To learn more, visit esab.com
