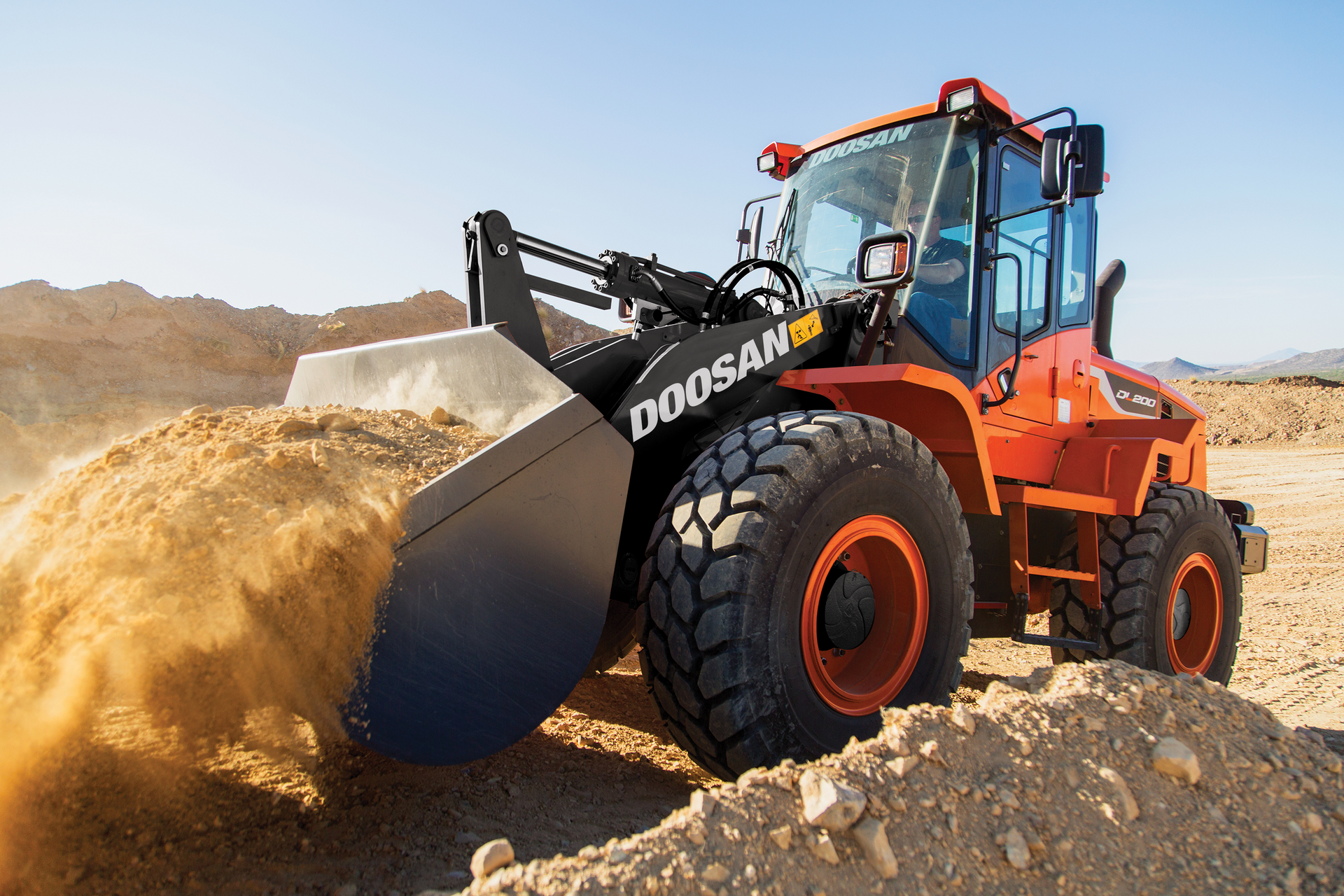

Photo by Doosan Infracore North America
Doosan Boom Arm Dl200 5 64a9632 15g1 Ch 2020

Doosan Infracore North America Shows DL200-5 Wheel Loader at World of Concrete

Feb. 7, 2020
Doosan Infracore North America LLC exhibited its new DL200-5 wheel loader during the annual World of Concrete in Las Vegas this past week.

Doosan Infracore North America LLC exhibited its new DL200-5 wheel loader during the annual World of Concrete in Las Vegas this past week.

The Doosan DL200-5 wheel loader is designed for digging, heavy lifting and general construction tasks, and has a Z-bar lift-arm linkage system. The Z-bar lift-arm provides more power, breakout force and reach for digging and loading high-sided trucks.

The DL200-5 features a hydrostatic transmission, giving wheel loader operators more power, enhanced fuel efficiency and better precision while working. Operators can choose between three power modes – power, standard and economy – that adjust the maximum engine rpm. Unique to the hydrostatic drive system, the engine rpm is not directly correlated to the machine’s travel speed, so the maximum travel speed remains unaffected.

In addition, wheel loader operators can choose from three traction modes – max, traction control and S-Mode – to easily adjust traction force to match jobsite conditions for more efficient operation in digging, stockpiling and loading applications.

The DL200-5 wheel loader is available in a high-lift option for additional lift height and reach to more easily load materials such as cement into high-sided trucks.

DL200-5 wheel loader specs

·               Horsepower (net): 142 hp

·                Operating weight:

o        25,794 pounds (standard)

o        26,566 pounds (high-lift option)

·                Bucket capacity: 2.6 cubic yards

·                Dump height:

o        9 ft. 6 in. (standard)

o        11 ft. (high-lift option)

·                Breakout force:

o        22,481 pounds lbf. (standard)

o        22,931 pounds lbf. (high-lift option)

·                Available in high-lift Z-bar configuration for additional dumping height

·                Approved attachments: general purpose, light material and multi-purpose buckets; pallet fork; and quick coupler

Doosan Infracore North America, LLC, headquartered in Suwanee, Ga., markets the Doosan brand of products that includes crawler excavators, wheel excavators, mini excavators wheel loaders, articulated dump trucks, material handlers, log loaders and attachments. It has more than 150 heavy equipment dealer locations in North America.
