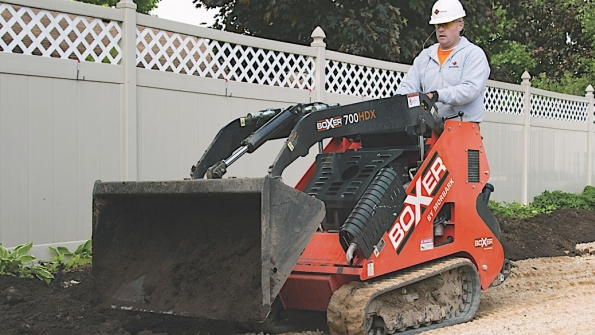

The Boxer 700HDX mini skid steer features a unique hydraulically expandable undercarriage — from 35 inches to 43.5 inches — allowing the operator to retract the undercarriage for passages as narrow as 36 inches wide then expand for increased stability while in operation by simply pulling or pushing a control lever. The low profile, expandable undercarriage uses 9-inch wide rubber tracks, which reduces ground pressure and provides less aggressive turning.
The 700HDX features a 24.8-horsepower diesel engine with dual remote auxiliaries producing 11.3 gpm on the motor spool circuit and 8.7 gpm from the cylinder spool circuit. An easy-to-use, push-button, boom-mounted pressure relief block releases residual machine pressure to simplify hydraulic attachment connections.
