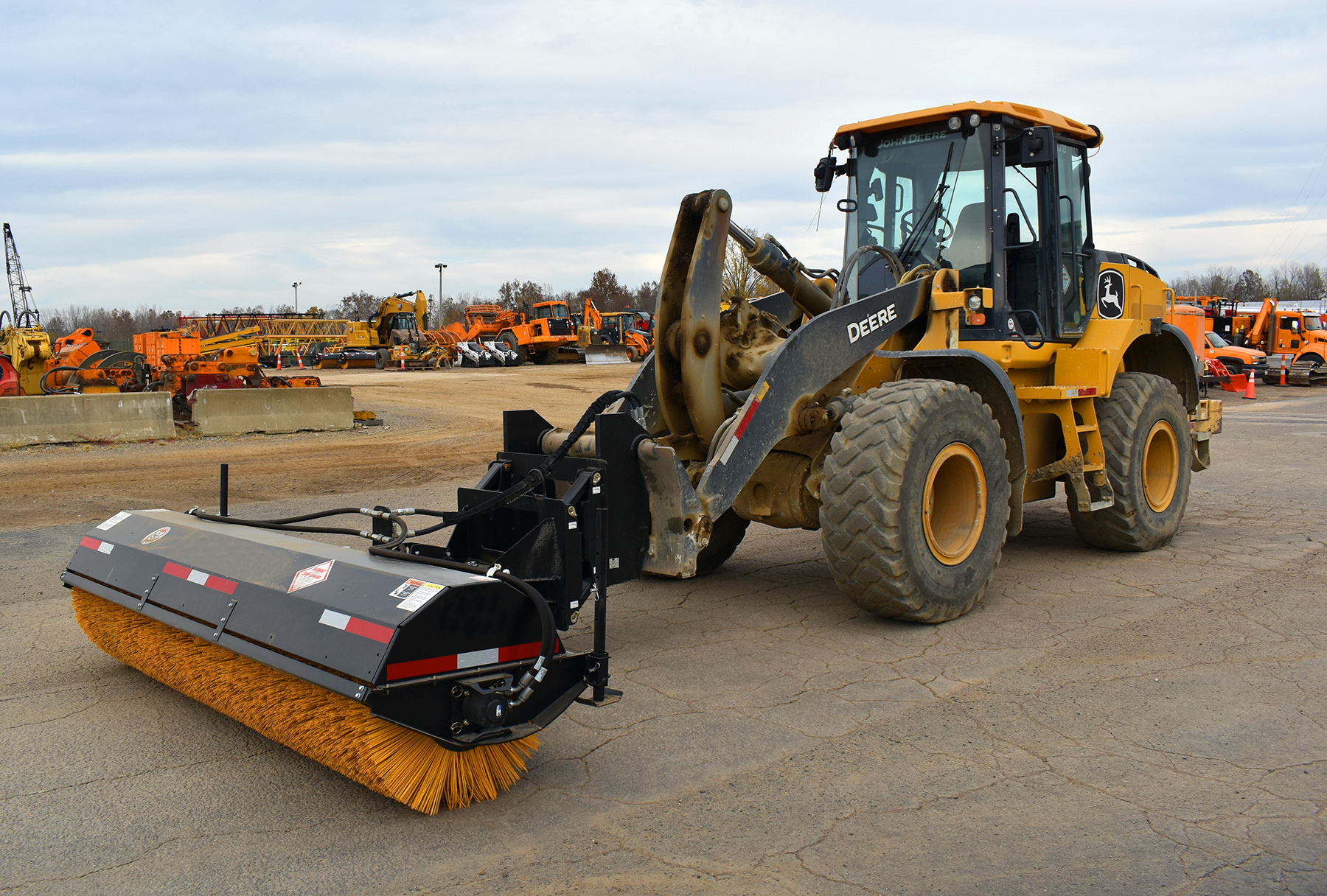

Photo by Werk-Brau
Werk Brau W B Wheel Loader Angle Broom 2023

Werk-Brau Wheel Loader Angle Brooms Clear Snow, Dirt, Debris and Grass

April 25, 2023
They are available in 8-, 10-, and 12-foot widths, each with 30° of swing left or right of center.

New Werk-Brau hydraulically driven wheel loader angle brooms are designed for cleaning and clearing of snow, dirt, debris, grass and more. They are available in 8-, 10-, and 12-foot widths, each with 30° of swing left or right of center. Polypropylene brush with wire filaments provides long service life even in adverse conditions. Hydraulically driven brooms are powered by a standard dual hydraulic motor capable of 28-40 gpm flow (standard), with dual hydraulic motors for low flow (16-24 gpm), or high flow (40-60 gpm) motor available as options.

A loader mounting kit is provided along with a storage stand for simple mounting, dis-mounting, and storage. Sight indicator flags are provided for safety. Broom speeds of up to 250 RPM are attainable, depending on the prime mover, making this angle broom an attachment for wheel loaders of all makes, models, and sizes.

Werk-Brau angle brooms are U.S.-made. Some models are stocked for immediate shipment. The wafer-style brush has 32-inch outside diameter x 10-inch inside diameter. Brush core can be installed with either end to the left or right with no effect on sweeping performance, to simplify installation. Brush and core assembly can be removed from the frame without disconnecting drive motor hoses. Brush hood is manufactured from 16-gauge steel with formed edge fold for additional strength. Robust end plates are 12-gauge steel for more durability. The brush hood covers 140-degrees of brush and includes pre-drilled holes for easy installation of front deflector. Dirt deflectors are standard on all models.

Brooms are standard with a single, low-speed, high-torque, 18-CID hydraulic motor. Motors are coupled directly to the brush core through a 5 5/16-inch poly hexagonal hub. The motor is mounted outside of brush frame and is protected by formed ¼-inch guards. Hoses are provided from hydraulic motor to bulkhead or valve on broom; customer must supply hoses from bulkhead or valve to prime mover. A spring system to dampen transportation bounce is included.

Finish is black polyurethane topcoat with epoxy primer for protection from the elements. Steel surface undergoes a phosphatizing acid bath to clean and etch the surface for superior adhesion of primer and paint.
