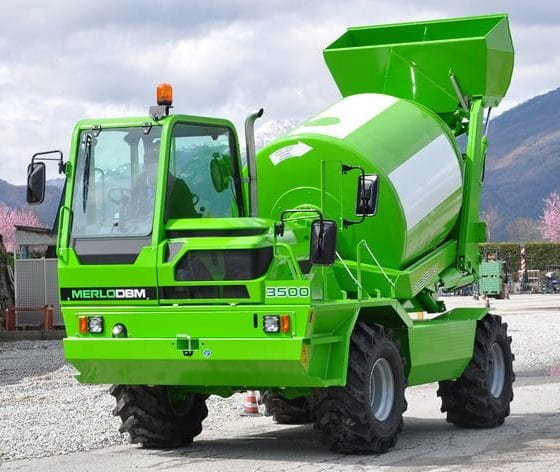

Photo by Merlo
Dbm 3500 Main E1624036806417 62c4b45034ef9

Merlo’s DBM 3500 Cement Mixer Features a Drum Volume of 1,321 Gallons

July 5, 2022
The drum ensures a high-quality mix thanks to the high geometric volume of the drum, a reduced angle of inclination, and a double spiral propeller with variable pitch.

Applied Machinery Sales, the official importer and distributor of Merlo telehandlers and Rotos, introduces a new Merlo product line to the United States: DBM 3500 Mini Cement Mixers.

The DBM 3500 is a self-contained mini mixer. It has a drum volume of 1,321 gallons delivering 4.6 yards3 of concrete. The self-loading bucket handles up to 25 cubic/feet of aggregate at each load cycle. The pump moves 66 gallons of water per minute into the mixing drum, which supplies up to 37.7 square feet of concrete to be made in less than 15 minutes.

The drum ensures a high-quality mix thanks to the high geometric volume of the drum, a reduced angle of inclination, and a double spiral propeller with variable pitch. The hydraulics on the self-loading bucket lifts and rotates the bucket as needed. The bucket door automatically opens to unload the aggregate into the drum.

The hydraulic water system is composed of a self-priming pump (66 g/min.) with a three-way diverter to the barrel, tank, or the 20-foot hose with washing lance. A gallon counter placed on the dashboard and ground controls regulate the amount of water delivered into the barrel and the lance.

A unique feature of the Merlo DBM3500 are the ground controls that replicate controls found in the cab. From the ground, an operator can control engine acceleration, water pump activation, drum rotation, barrel lift, chute lift, and emergency stop.

The drum sits on a ‘fifth wheel’ allowing 180° lateral rotation. Added to the vertical tilt capability, the DBM3500 can discharge concrete up to 330° around the machine. The maximum unloading height of the discharge chute is 6.7 feet /inches. This hydraulically lifted and adjustable chute (+/- 90°) and its two 10-foot extensions are standard. Machine performance is controlled from the cab or the ground.

The spacious, ROP-certified cab is built with double controls split between front and rear. The front controls are for driving. The comfortable seat spins 180° to access the rear controls that drive the vehicle, manages the mixing drum and self-loading bucket. A lever is used to reverse the direction of machine travel.

Operator and machine safety are designed into every DBM concrete mixer, the company said. When unloaded, the barrel offset–in relation to the frame axle– compensates for the cab weight and supplies optimal front and rear visibility. When fully loaded, the concrete mass is pushed onto the longitudinal axis of the machine to maintain the gravitational center.

The 100 HP (Tier 4 Final-compliant) engine is placed on the front side of the frame, maximizing ventilation for cooling and accessibility.

The DBM3500 is a compact machine (ft./in.: 17.9 x 7.7 x 12.7) with weight balance and a travel speed of up to 25 mph. It comes equipped with: portal axles (increased ground clearance), 4WD with three steering modes, hydrostatic transmission, and a robust engine. Combined, the DBM 3500 delivers high torque to the wheels providing safe, nimble maneuvering on any terrain. The large water tank means the DBM3500 cement mixer can fully operate in areas without water supply sources. Thanks to its agile characteristics, such as the angles of inclination, tight turning radius, and the reduced overall dimensions, the DBM cement mixer is suitable for working in confined, difficult-to-reach spaces.
